STRAIGHT HOOD 1000

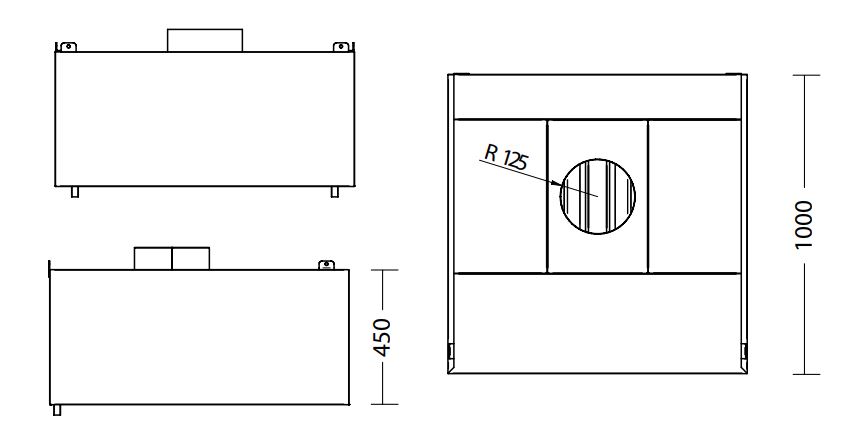

| Type | Material | Condensate discharge | Assembly method | X x Z x Y (mm) | Additional options |
|---|---|---|---|---|---|
| straight, box | stainless steel 1.4301 | yes | wall | 1000 x 450 | A labyrinth filters made of stainless steel 1.4301 B lighting C fan |
| Product No. * | Width | Dimensions of filters | Number of filters | Weight (kg) |
|---|---|---|---|---|
| WGO210 | 1000 | 500 x 400 | 2 | 39 |
| WGO212 | 1200 | 500 x 500 | 2 | 45 |
| WGO214 | 1400 | 500 x 400 | 3 | 52 |
| WGO216 | 1600 | 500 x 500 | 3 | 59 |
| WGO218 | 1800 | 500 x 400 | 4 | 67 |
| WGO220 | 2000 | 500 x 400 | 4 | 75 |
| * if you want to order a hood with labyrinth filters, add A to product number * if you want to order a hood with lighting, add B to product number * if you want to order a hood with a fan, add C to product number |
||||
